1200mm Big Size Plastic Pert HDPE PPR Hot/Cold Water and Drainage Pipe/Tube Extrusion Making/Machine
Plastic PERT PPR Hot/Cold Water Pipe/Tube Extrusion Making/Machine This machine developed by Hanhai company is featured
Description
Basic Info
| Model NO. | SJ65/38, SJ80/38, SJ92/38, SJ120/38 |
| Customized | Customized |
| Condition | New |
| After-sales Service | Engineers Available to Service Machinery Overseas |
| Name | Large Diameter HDPE Pipe Production Line |
| Extruder Model | Sj65/38, Sj80/38, Sj92/38 |
| Screw Design | Single Screw |
| Weight | 20000 Kg-30000 Kg |
| Voltage | 380V 50Hz or Customizable |
| Raw Material | PP PE Granules |
| Motor Brand | Siemens |
| PLC Brand | Siemens |
| Inverter Brand | ABB/Delta |
| Temperature Controller Brand | Omoron |
| Automatic Grade | Fully Automait |
| Pipe Dimater | 16mm-2000mm Customized |
| Transport Package | by Sea |
| Specification | 16-1200mm |
| Trademark | Hanhai |
| Origin | Qingdao, China |
| HS Code | 84772090 |
| Production Capacity | 30-50 Sets Per Year |
Product Description
Plastic PERT PPR Hot/Cold Water Pipe/Tube Extrusion Making/Machine
This machine developed by Hanhai company is featured of unique structure, high degree of automatic, easy operationand stable reliable continuous manufacture performance. It consists of the following six parts:
| NO. | Name | Quantity |
| 1 | Single screw extruder (with automatic feeding system) | 1set |
| 2 | Die head (Mold) | 1set |

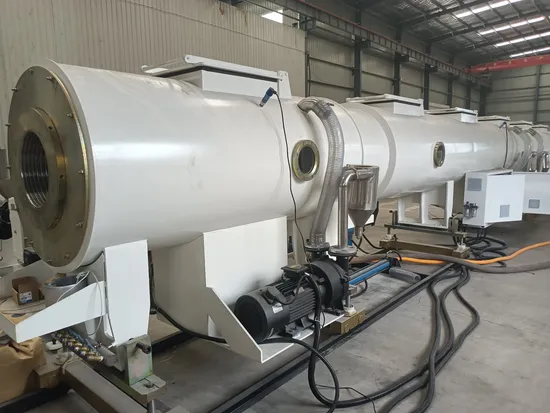

| 3 | Calibrating and cooling tank | 1set |
| 4 | Haul-off machine | 1set |
| 5 | Cutting machine | 1set |
| 6 | Stacker | 1set |
| Extruder Model | Pipe Diameter(mm) | Production Capacity(kg/h) | Total Power(kw/h) |
| SJ50 | 16~63 | 100~150 | 75 |
| SJ65 | 75~160 | 300~350 | 160 |
| SJ75 | 200~400 | 600~700 | 280 |
Production flow of PPR water pipe making machine
Raw material→ vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould →vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker
Detailed Images: 1.Single screw extruder (with automatic feeding system)1.Motor brand: Siemens 2. Inverter: ABB/Delta 3.Contactor: Siemens 4. Heating method: Ceramic or cast aluminum 5.Screw and barrel: 38CrMoAlA.6.Extruder model: SJ45/SJ55/SJ65/SJ75/SJ90/SJ100/SJ120/ SJ1502.Mold1.Material: 3GR17 2.Diameter: Customized3.Pipe diameter:16-1200mm4.Pipe pressure grade:0.6MPa,0.8MPa,1.0MPa,1.25MPa,1.6MPaSDR26,SDR21,SDR17,SDR13.6,SDR11, etc. 3.Calibrating and cooling tank1.Raw material: #340 stainless steel2.Pipe diameter:16-1200mm3.Spray cooling:ABS nozzle4.Vaccum pump , Water pump :Simens brand4.Haul-off machine1.Model:belt type/ two claws /three claws/four claws/six claws/eight claws.2.Servo motor support3. Diameter :16-1200mm4.Counter meter 5.Cutting machine1.Cutting method: chipless / planet cutting2.Pipe range:16-1200mm6. Stacker1. Raw material :stailess steel2. Lenght:6m /12 mFeatures HDPE pipes:1. Size: 16mm to 1800mm2, Thickness: 2 3-162mm3. Pressure Rating: 0.6mpa, 0. 8mpa, 1. 0mpa, 1.25mpa, 1.6,2.0mpa4. Color: black, black with blue stripes, other colors available on request5. Connection: socket fusion joint, butt fusion joint, electro fusion joint, flanged joint
You just tell me what machine you want,let us do the rest work:
1. Design and manufacture suitble machine for you.2. Before delivery, we will test the machine until you are completely satisfied. (You can come to our factory to inspect therunning production line.)3. Delivery.4. We will provide after-sales service: (1) Field installation and commissioning; (2) Field training your workers;(3) Field maintenance and repair service ;(4) Free Spare Parts ; (5) Video/Online technical support. Customer Comments: FAQ:1.Are you manufacturer or trading company?We are manufacturer.2.Why choose us?We have 20 years experience for producing machine.We can arrange for you to visit our local customer's factory.3.Delivery time:30 days.4.Payment terms:30% of total amount should be paid by T/T as down payment, the balance (70% of total amount) should be paid beforedelivery by T/T or irrevocable L/C(at sight).5.After-sales service: Free Spare Parts ; Field installation, commissioning and training ; Field maintenance and repair service ;Video/Online technical support.6.Warranty: 1 year.
